Uses a high-precision laser 3D camera for dimension measurement, providing stable imaging and enabling high-speed, high-precision measurement. The camera features an integrated design with simple interfaces for easy maintenance.

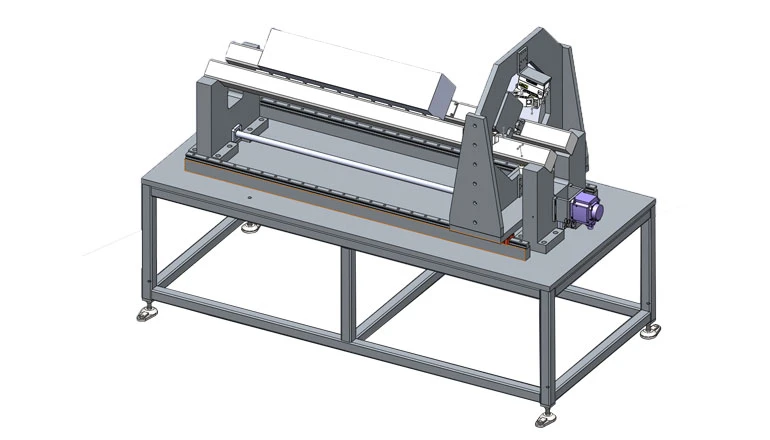

Adopts a dual-guide rail design for smoother movement, more stable image data acquisition, and high repeatability accuracy.
Professional industrial control computer with excellent stability, running Chinese Windows 10 operating system.
Proprietary high-speed 3D data transmission and high-performance point cloud data processing algorithms enable fast and accurate dimension inspection.
| Parameter | Specification |
|---|---|
| Power Supply | 380V±10%, 50Hz, three-phase five-wire system |
| Equipment Availability | ≥98% |
| Failure Rate | ≤2% |
| Throughput | ≥1 bar/minute |
| Compressed Air | Pressure 0.6-0.8MPa |
| Information Interface | Provides database interface for centralized data management |
| Load Capacity | Maximum square bar weight 100kg |
| Parameter | Specification |
|---|---|
| Length Measurement | Range: 200～1000mm, Repeatability ≤0.3mm |
| Edge Width Measurement | Range: 168-210mm, Repeatability ≤0.03mm |
| Diagonal | Range: 222-300mm, Repeatability ≤0.03mm |
| Chamfer (Chord Length) | Range: 0-25mm, Repeatability ≤0.1mm |
| Squareness | Range: 85-95 degrees, Repeatability ≤0.1 degree |
| Perpendicularity | Range: 85-95 degrees, Repeatability ≤0.1 degree |
| Throughput | 1 bar/minute |
| No. | Item | Specification | Brand | Unit | Qty |
|---|---|---|---|---|---|
| 1 | Industrial Camera | Laser Scanning Camera | SC | set | 4 |
| 2 | Industrial PC | I7-11700/16GB Dual-Channel Memory/128GB SSD/1TB HDD | DELL | set | 1 |
| 3 | Software System | Software interface, proprietary algorithm | SC | set | 1 |
| 4 | Electrical Control System | Control trigger | SC | set | 1 |
| 5 | Automation System | Includes loading/unloading and scanning mechanism | SC | set | 1 |
High-precision laser 3D measurement, dual-guide rail stable motion, proprietary point cloud algorithm, achieving fast and accurate dimension inspection of square bars, helping customers improve finished product quality and optimize manufacturing processes.
